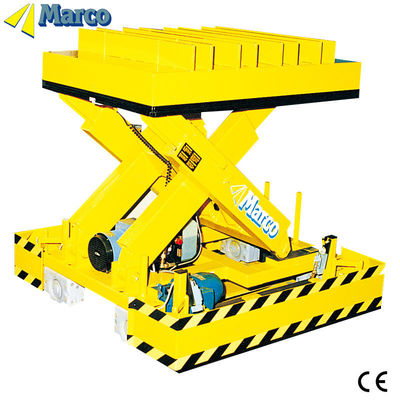

8-10 ton Marco Single Scissor Lift Table met CE-certificering en isolatieontwerp
Productdetails
| Kenmerken: | Isolatie | Transportpakket: | Houten pallet |
|---|---|---|---|
| Specificatie: | CE | Handelsmerk: | Marco. |
| Oorsprong: | Ningbo, China | HS-code: | 8428909090 |
| Toepassing: | Werkplaatskraan, scheepskraan, magazijnkraan, bouwkraan | Liftmechanisme: | Scherenheffen |
| Draagvermogen: | Gewichtsniveau | Bewegingen: | Vastgebonden |
| Gedreven type: | hydraulisch | Loopmodus: | Vastgebonden |
| Aanpassing: | Beschikbaar Gepersonaliseerd verzoek |
Productbeschrijving
Lifttafel met één schaarDe Commissie is van mening dat de Commissie de mogelijkheid moet bieden om de Commissie te informeren over de resultaten van de evaluatie.
De belangrijkste steunstaalstructuur bestaat uit rechthoekige staalprofielen om de hoogste stabiliteit en weerstand te garanderen.
Hoofdspesificatie:
1.Standaardopties
Pomp: merk Europa
Controleboks- doodmancontrole met up/down/E-stop
Cylinder: Marco ontwerpt, OEM gemaakt, inclusief breukklep, demping en pilotklep
Verzegelpakket voor cilinder: merk SKF
Motor: Hoyer-motor, bescherming IP55
Scherenarm: Q345B
Hydraulische slang: Eaton
Verf: Finse merk - Tikkurila
2- Extra opties: Afhankelijk van uw behoefte
Onze diensten:
1Voor al uw vragen over ons, zullen we u binnen 24 uur antwoorden.
2We hebben een goed getrainde en gepassioneerde verkoop- en after-sales dienst die vloeiend Engels spreekt.
3We kunnen op maat gemaakte oplossingen bieden voor specifieke behoeften.
Verpakking en verzending:
Hoofdlaadhaven: Shanghai of Ningbo
Productie Levering: 6-8 weken (zonder feestdagen)
| Warmverkoop voor 8-10 ton Marco-tafel met CE-goedkeuring: | ||||||||
| Art. Nee. | Type | Capaciteit (kg) | Platform (L*W) | Lifthoogte (mm) | Eigen hoogte (mm) | Lifttijd (en) | Motor (kw) | Gewicht (kg) |
| 860080 | M5-080150-D2 | 8000 | 3000*2000 | 1500 | 600 | 32 | 4.6 | 2335 |
| 860090 | M5-100150-D4 | 10000 | 3000*2000 | 1500 | 600 | 46 | 4.6 | 2420 |
Hoogtepunten van het product
Single scissor lift table have multi-purpose applications and are normally used to solve issues with handling, difference in levels, production and logistic areas! The main support steel structure consists of rectangular steel profiles to assure the highest stability and resistance. Main Specification:1.Standard Options Pump: Europe brandControl box- dead man control with up/down/E-stop Cylinder: Marco designing, OEM made, including rupture valve, damping action and pilot
