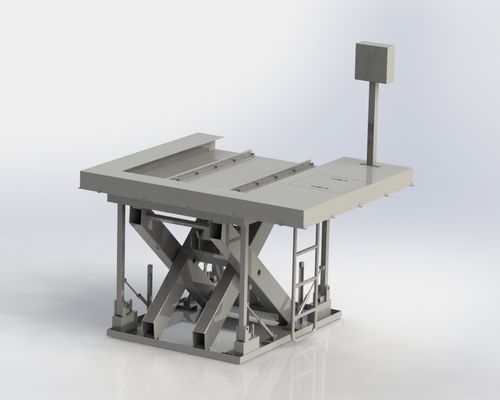

Hydraulische ladingstafel met 15000 kg draagvermogen en 2700x2200 mm grootte
Productdetails
| Model nr.: | M6.5-150121-D2K | Lifthoogte: | 1210MM |
|---|---|---|---|
| Lifttijd: | 100s | Transportpakket: | Houten pallet en stalen pallet, houten behuizing |
| Specificatie: | 2700 x 2200 mm | Handelsmerk: | Marco. |
| Oorsprong: | China | HS-code: | 84289090 |
| Levering vermogen: | 1000 | Garantie: | 12 maanden |
| Liftmechanisme: | Scherenheffen | Draagvermogen: | 15000 kg |
| Bewegingen: | Vastgebonden | Gedreven type: | hydraulisch |
| Loopmodus: | Vastgebonden | Aanpassing: | Beschikbaar Gepersonaliseerd verzoek |
Productbeschrijving
Laadkade heftafel is speciaal ontworpen om de puntbelastingen te weerstaan wanneer voertuigen de heftafel oversteken. Het wordt voornamelijk gebruikt in laad-/losgebieden, zoals magazijnen en laadperrons. Het kan buiten worden gebruikt.
Anders dan andere soorten heftafels, heeft de laadkade tafel de volgende standaardfactoren:
Scheurplatform, met olie gevulde min-zijde op de cilinder, versterkt bovenframe, serviceluik aan de bovenkant voor onderhoud van het aggregaat, landingspen op het basisframe, twee verfprocessen met een dikte van 120um.
| Modelnummer | M6.5-150121-D2K | Capaciteit | 15000kg |
| Platformgrootte | 2700x2200mm | Basisframe | 2700x2170mm |
| Min. hoogte | 250mm | Hefhoogte | 1210mm |
| Modeltype | stationair | Heftijd | 100s |
| Kleur | Grijs/groen/blauw/anders | Productnaam | verwijzen naar product |
| Specificaties | Aanpasbaar | Toepassing | materiaalbehandeling |
| Spanning | 380V 50Hz | Besturingsspanning | 24V DC |
| Levertijd | 1 maand | Verpakking | geëxporteerde kist |
| Handelsmerk | Marco | HS-code | 84289090 |
| Herkomst | Gemaakt in China | Productiecapaciteit | 100/maand |
| Certificaat | ISO9001, CE, ISO3834, | Ontwerpstandaard | EN1570-1-2011 |
Hoogtepunten van het product
Product Description Loading dock lift table is specially designed to withstand the point loads, when the vehicles cross the lift table. It is mainly used on loading / unloading areas, such as warehouse, loading bay. It can used for outdoor.Different from other type of lift table, Loading dock table has standard factors as below:Tear platform, oil filled minus side on cylinder, reinforced top frame, service hatch on top for power pack maintenance, Landing pin on base frame,
