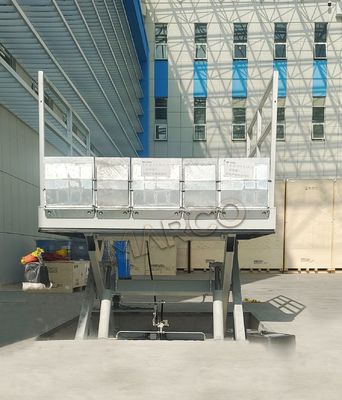

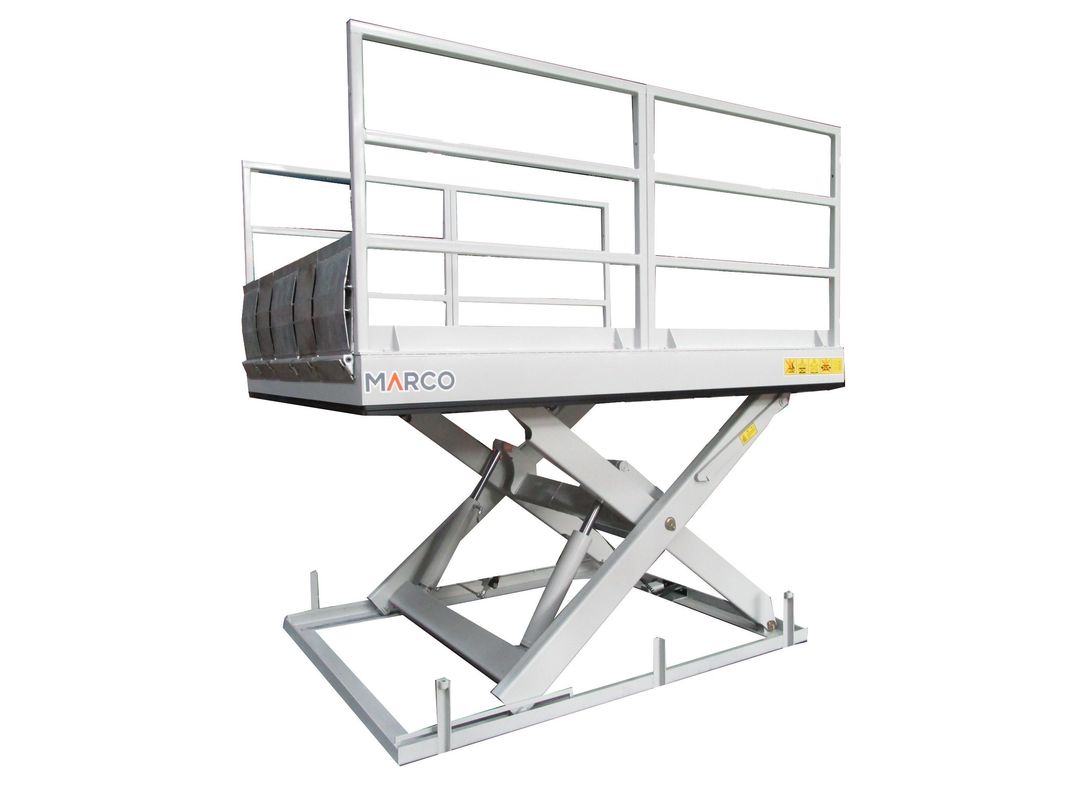

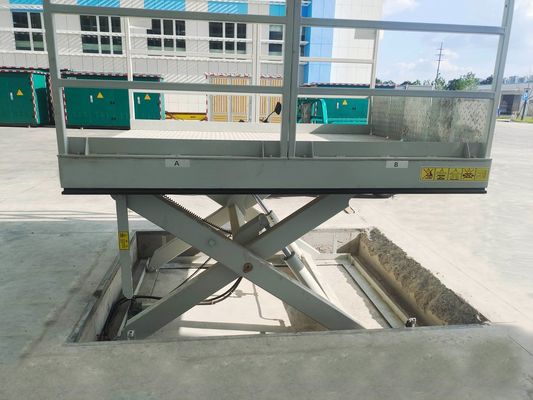

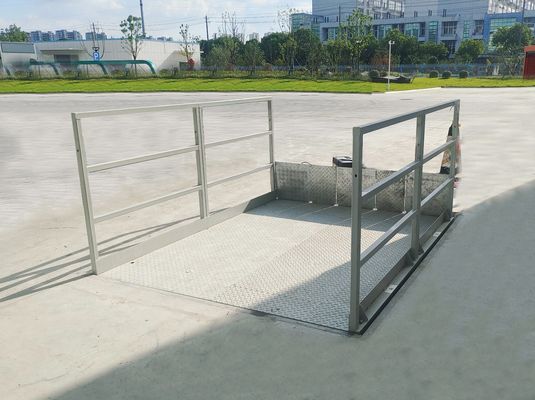

Aanpassing M3-025130-D2K Laaddock tafel met handrail en laadklappen
Productdetails
| Model nr.: | M3-025130-D2K | Lifthoogte: | 1300 mm |
|---|---|---|---|
| Lifttijd: | 33's | Transportpakket: | Houten pallet en stalen pallet, houten behuizing |
| Specificatie: | 2500 x 2000 mm | Handelsmerk: | Marco. |
| Oorsprong: | China | HS-code: | 84289090 |
| Levering vermogen: | 1000 | Garantie: | 12 maanden |
| Liftmechanisme: | Scherenheffen | Draagvermogen: | 2500 kg |
| Bewegingen: | Vastgebonden | Gedreven type: | hydraulisch |
| Loopmodus: | Vastgebonden | Aanpassing: | Beschikbaar Gepersonaliseerd verzoek |
Productbeschrijving
De lifttafel is speciaal ontworpen om de puntbelastingen te weerstaan wanneer de voertuigen de lifttafel oversteken.Het kan buiten gebruikt worden..
In tegenstelling tot andere soorten lifttafels heeft de ladingstafel standaardfactoren als hieronder:
Olie gevuld platform, minus zijde op cilinder, versterkt bovenste frame, service luik op de bovenkant voor het onderhoud van het aandrijflijntje, landingspeld op basis frame, twee verfproces met dikte 120um.
| Model nr. | M3-025130-D2K | Capaciteit | 2500 kg |
| Grootte van het platform | 2500 x 2000 mm | Basisframe | 2500 x 1900 mm |
| Min. hoogte | 305 mm | Lifthoogte | 1300 mm |
| Modeltype | stilstaand | Lifttijd | 33's |
| Kleur | Grijs/groen/blauw/andere | Naam van het product | verwijst naar het product |
| Specificaties | Aanpasbaar | Toepassing | materiaalbehandelingen |
| Vermogenspanning | 380 V 50 Hz | Regelspanning | 24 V gelijkstroom |
| Leveringstermijn | 1 maand | Pakket | geexporteerde zaak |
| Handelsmerk | Marco. | HS-code | 84289090 |
| Orgin | Made in China | Productiecapaciteit | 100/maand |
| Certificaat | ISO9001, CE, ISO3834, | Ontwerpnorm | Voor de toepassing van EN 1570-1-2011 |
Hoogtepunten van het product
Product Description Loading dock lift table is specially designed to withstand the point loads, when the vehicles cross the lift table. It is mainly used on loading / unloading areas, such as warehouse, loading bay. It can used for outdoor. Different from other type of lift table, Loading dock table has standard factors as below: Tear platform, oil filled minus side on cylinder, reinforced top frame, service hatch on top for power pack maintenance, Landing pin on base frame,
