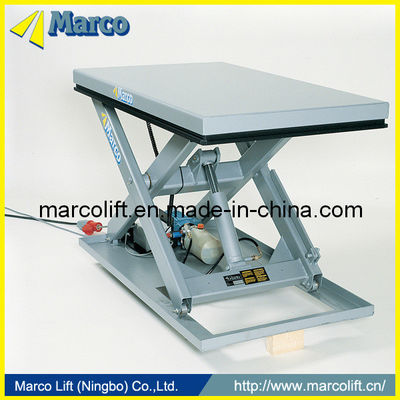

Op maat gemaakte aanvraag 0,5-1 ton Marco Single Scissor Lift Table met CE-certificering
Productdetails
| Model nr.: | b.v.: M0-010055-D1# | Kenmerken: | Isolatie |
|---|---|---|---|
| Transportpakket: | Houten pallet | Specificatie: | CE |
| Handelsmerk: | Marco. | Oorsprong: | Ningbo, China |
| HS-code: | 8428909090 | Toepassing: | Werkplaatskraan, scheepskraan, magazijnkraan, bouwkraan |
| Liftmechanisme: | Scherenheffen | Draagvermogen: | Gewichtsniveau |
| Bewegingen: | Vastgebonden | Gedreven type: | hydraulisch |
| Loopmodus: | Vastgebonden | Aanpassing: | Beschikbaar Gepersonaliseerd verzoek |
Productbeschrijving
De belangrijkste steunstaalstructuur bestaat uit rechthoekige staalprofielen om de hoogste stabiliteit en weerstand te garanderen.
Hoofdspesificatie:
1.Standaardopties
Pomp: merk Europa
Controleboks- doodmancontrole met up/down/E-stop
Cylinder: Marco ontwerpt, OEM gemaakt, inclusief breukklep, demping en pilotklep
Verzegelpakket voor cilinder: merk SKF
Motor: Hoyer-motor, bescherming IP55
Scherenarm: Q345B
Hydraulische slang: Eaton
Verf: Finse merk - Tikkurila
2- Extra opties: Afhankelijk van uw behoefte
Onze diensten:
1Voor al uw vragen over ons, zullen we u binnen 24 uur antwoorden.
2We hebben een goed getrainde en gepassioneerde verkoop- en after-sales dienst die vloeiend Engels spreekt.
3We kunnen op maat gemaakte oplossingen bieden voor specifieke behoeften.
Verpakking en verzending:
Hoofdlaadhaven: Shanghai of Ningbo
Productie Levering: 6-8 weken (zonder feestdagen)
| Warmverkoop voor 0,5-1 Ton Marco enkel lifte tafel met CE goedkeuring: | ||||||||
| Art. Nee. | Type | Capaciteit (kg) | Platform (L*W) | Lifthoogte (mm) | Eigen hoogte (mm) | Lifttijd (en) | Motor (kw) | Gewicht (kg) |
| 860000 | M0-010055-D1# | 500 | 800*600 | 500 | 180 | 9 | 0.75 | 130 |
| 860001 | M1-005090-D1 | 500 | 1350*800 | 900 | 180 | 20 | 0.75 | 195 |
| 861001 | M1-010090-D1B | 500 | 1350*1000 | 900 | 180 | 20 | 0.75 | 200 |
| 860002 | M1-005125-D1 | 500 | 1800*800 | 1250 | 220 | 33 | 0.75 | 225 |
| 860003 | M2-005160-D1 | 500 | 2250*800 | 1600 | 220 | 33 | 0.75 | 370 |
| 860004 | M1-010055-D1# | 1000 | 1000*800 | 550 | 180 | 11 | 0.75 | 170 |
| 860010 | M1-010090-D1 | 1000 | 1350*800 | 900 | 180 | 20 | 0.75 | 195 |
| 862010 | M1-010090-D2 | 1000 | 1350*1200 | 900 | 180 | 20 | 0.75 | 220 |
| 861010 | M1-010090-D1B | 1000 | 1350*1000 | 900 | 180 | 20 | 0.75 | 200 |
| 860011 | M1-010125-D1 | 1000 | 1800*800 | 1250 | 220 | 33 | 0.75 | 240 |
| 860012 | M2-010125-D2B | 1000 | 1800*1200 | 1250 | 235 | 30 | 1.1 | 370 |
| 860013 | M2-010160-D2 | 1000 | 2250*1000 | 1600 | 235 | 30 | 1.1 | 400 |
| 860014 | M2-010160-D2B | 1000 | 2250*1500 | 1600 | 300 | 30 | 1.1 | 490 |
Hoogtepunten van het product
Single scissor lift table have multi-purpose applications and are normally used to solve issues with handling, difference in levels, production and logistic areas! The main support steel structure consists of rectangular steel profiles to assure the highest stability and resistance. Main Specification: 1.Standard Options Pump: Europe brand Control box- dead man control with up/down/E-stop Cylinder: Marco designing, OEM made, including rupture valve, damping action and pilot
M1-010125-D2 Ce Hydraulische mini-scharnierlift met handrail
Marco Standard Components All Marcolift standard lift tables are manufactured with high quality components to enhance reliability, durability and safety in operation. Pump Bucher Motor Hoyer Denmark, protection IP55 Control Panel Marco standard control box Sealing Sweden, SKF Cylinder Marco, with rapture valve and damping Limit switch USA, Suns Safety frame Aluminum with limit switch Scissor arm Q345B, profile steel Paint Finland, Tikkurila Hydraulic hose USA, Eaton Marco
Vaste 4 ton Marco Twin Scissor Lift Table met draagvermogen
When handling long and cumbersome items the lift table type Marco Twin Lift Table can offer the best solution. Marco Twin Lift Table is designed with two or multiple sets of scissors placed end to end to achieve the requested platform length and lifting capacity. In principle, this range consists of a combination of several Marco single scissors. The lifting stroke of the scissors set is created by a controlled synchronism to perform a parallel lifting motion.Main Specificati
Vaste Marco Twin Scissor Lift Table voor auto productie lijn in de automobielsector
When handling long and cumbersome items the lift table type Marco Twin Lift Table can offer the best solution. Marco Twin Lift Table is designed with two or multiple sets of scissors placed end to end to achieve the requested platform length and lifting capacity. In principle, this range consists of a combination of several Marco single scissors. The lifting stroke of the scissors set is created by a controlled synchronism to perform a parallel lifting motion.Main Specificati
8-10 ton Marco Single Scissor Lift Table met CE-certificering en isolatieontwerp
Single scissor lift table have multi-purpose applications and are normally used to solve issues with handling, difference in levels, production and logistic areas! The main support steel structure consists of rectangular steel profiles to assure the highest stability and resistance. Main Specification:1.Standard Options Pump: Europe brandControl box- dead man control with up/down/E-stop Cylinder: Marco designing, OEM made, including rupture valve, damping action and pilot
