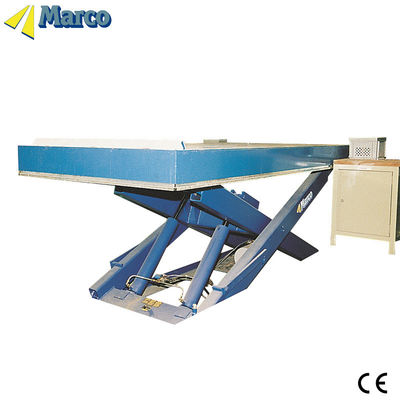

Stageur 2 ton CE-goedgekeurde Marco Single Scissor Lift Table met CE-certificering
Productdetails
| Model nr.: | b.v.: M2-020090-D2B | Kenmerken: | Isolatie |
|---|---|---|---|
| Transportpakket: | Houten pallet | Specificatie: | CE |
| Handelsmerk: | Marco. | Oorsprong: | Ningbo, China |
| HS-code: | 8428909090 | Toepassing: | Werkplaatskraan, scheepskraan, magazijnkraan, bouwkraan |
| Liftmechanisme: | Scherenheffen | Draagvermogen: | Gewichtsniveau |
| Bewegingen: | Vastgebonden | Gedreven type: | hydraulisch |
| Loopmodus: | Vastgebonden | Aanpassing: | Beschikbaar Gepersonaliseerd verzoek |
Productbeschrijving
De belangrijkste steunstaalstructuur bestaat uit rechthoekige staalprofielen om de hoogste stabiliteit en weerstand te garanderen.
Hoofdspesificatie:
1.Standaardopties
Pomp: merk Europa
Controleboks- doodmancontrole met up/down/E-stop
Cylinder: Marco ontwerpt, OEM gemaakt, inclusief breukklep, demping en pilotklep
Verzegelpakket voor cilinder: merk SKF
Motor: Hoyer-motor, bescherming IP55
Scherenarm: Q345B
Hydraulische slang: Eaton
Verf: Finse merk - Tikkurila
2- Extra opties: Afhankelijk van uw behoefte
Onze diensten:
1Voor al uw vragen over ons, zullen we u binnen 24 uur antwoorden.
2We hebben een goed getrainde en gepassioneerde verkoop- en after-sales dienst die vloeiend Engels spreekt.
3We kunnen op maat gemaakte oplossingen bieden voor specifieke behoeften.
Verpakking en verzending:
Hoofdlaadhaven: Shanghai of Ningbo
Productie Levering: 6-8 weken (zonder feestdagen)
| Warmverkoop voor 2 ton Marco-tafel met CE-goedkeuring: | ||||||||
| Art. Nee. | Type | Capaciteit (kg) | Platform (L*W) | Lifthoogte (mm) | Eigen hoogte (mm) | Lifttijd (en) | Motor (kw) | Gewicht (kg) |
| 860030 | M2-020090-D2 | 2000 | 1350*800 | 900 | 230 | 26 | 0.75 | 260 |
| 861030 | M2-020090-D2B | 2000 | 1350*1000 | 900 | 230 | 26 | 0.75 | 270 |
| 862030 | M2-020090D2B | 2000 | 1350*1200 | 900 | 230 | 26 | 0.75 | 300 |
| 860031 | M2-020125-D2 | 2000 | 1800*800 | 1250 | 250 | 30 | 1.1. | 335 |
| 860032 | M2-020125-D2B | 2000 | 1800*1200 | 1250 | 250 | 30 | 1.1 | 365 |
| 860034 | M2,5-020125-D2 | 2000 | 2000*1200 | 1250 | 250 | 35 | 1.1 | 425 |
| 860035 | M2,5-020125-D2B | 2000 | 2000*1500 | 1250 | 250 | 35 | 11 | 480 |
| 860036 | M3-020160-D2 | 2000 | 2250*1200 | 1600 | 300 | 33 | 2.2 | 580 |
| 860037 | M3-020160-D2B | 2000 | 2250*1500 | 1600 | 300 | 33 | 2.2 | 670 |
