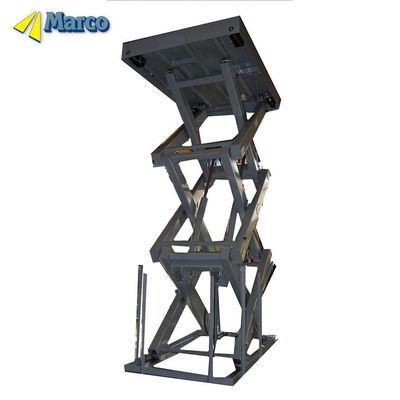

4500kg Capaciteit M5-045450-D2/3H Hydraulische schaarlifttafel met Europees rendement
Productdetails
| Model nr.: | M5-045450-D2/3H | Naam van het product: | 4.5 ton hoge hydraulische schaarheftafel |
|---|---|---|---|
| Capaciteit: | 4500 kg | Liftstrok: | 4500 mm |
| Dichtbij hoogte: | 1500 mm | Transportpakket: | Houten pallet |
| Handelsmerk: | Marco. | Oorsprong: | Ningbo |
| HS-code: | 8428909090 | Levering vermogen: | 1200 stuks/jaar |
| Toepassing: | Werkplaatskraan, scheepskraan, magazijnkraan, bouwkraan | Liftmechanisme: | Scherenheffen |
| Draagvermogen: | Speciaal gewichtsniveau | Bewegingen: | Vastgebonden |
| Gedreven type: | hydraulisch | Loopmodus: | Vastgebonden |
| Aanpassing: | Beschikbaar Gepersonaliseerd verzoek |
Productbeschrijving
Productbeschrijving
Marco 4.5 Ton Hoge Europese Standaard EN1570 Hydraulische Schaarheftafel
| Mechanische gegevens | |
| Capaciteit | 4500 kg |
| Hefslag | 4500 mm |
| Heftijd | 112 s |
| Gesloten hoogte | 1500 mm |
| Gewicht | 3625 kg |
Marco Standaard Componenten
Alle Marcolift standaard heftafels worden vervaardigd met hoogwaardige componenten om de betrouwbaarheid, duurzaamheid en veiligheid tijdens het gebruik te verbeteren.
| Pomp | Bucher | Motor | Hoyer Denemarken, bescherming IP55 |
| Bedieningspaneel | Marco standaard controlebox | Afdichting | Zweden, SKF |
| Cilinder | Marco, met breekklep en demping | Eindschakelaar | VS, Suns |
| Veiligheidskader | Aluminium met eindschakelaar | Schaararm | Q345B, profielstaal |
| Verf | Finland, Tikkurila | Hydraulische slang | VS, Eaton |
Marco Extra Component
Naast de standaarduitrusting van heftafels is het mogelijk om Marcolift heftafels te voorzien van een reeks accessoires om de veiligheid, veelzijdigheid en toepassing te verbeteren en de handling te vereenvoudigen.
Verpakking & Verzending:
Hoofdlading Haven: Shanghai of Ningbo
Productie Levering: 6-8 weken (feestdagen uitgesloten)
